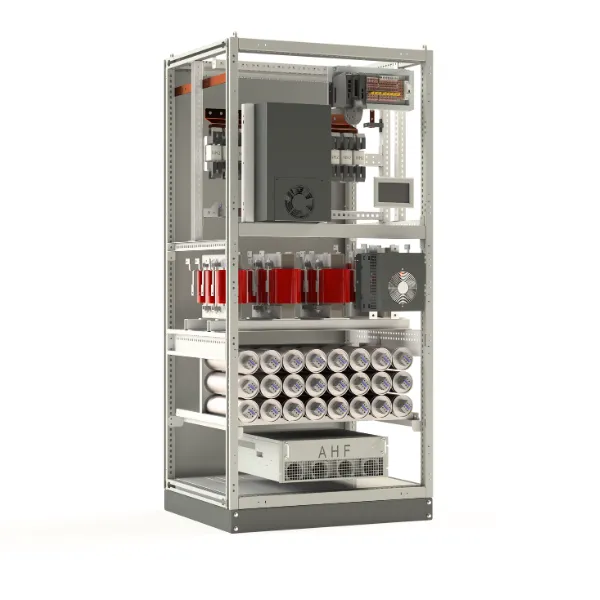

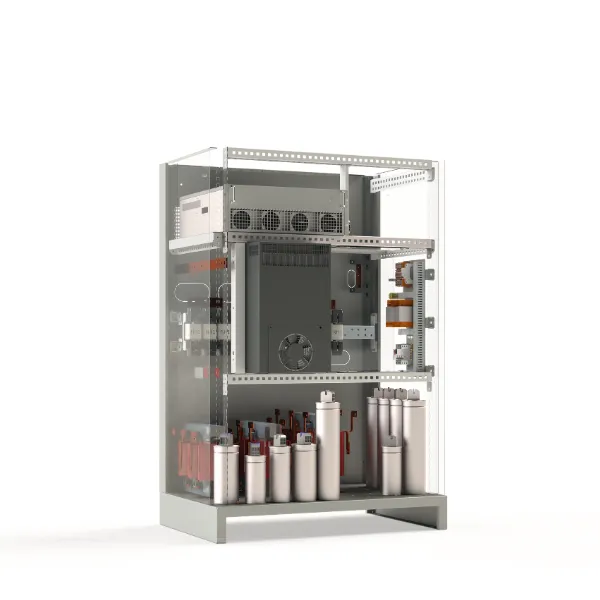

| Compact Activar/Equalizer |
| Manufacturer |
ELSPEC |
| System Power |
25kVAr to 3168kVAr |
| Network Voltage |
208V to 690V |
| Operational Frequency |
45-55Hz for 50Hz Network
55-65Hz for 60Hz Network |
| Losses |
208V – 690V < 0.8% |
| Communication |
Isolated RS485
Up to 115k Baud Rate
Protocol options:
ELCOM (Elspec High-Speed communication protocol) ModBus/RTU (IEEE 754 Floating Point)
Full remote control |
| Transient free operation |
Power electronic switching designed to switch capacitor groups into the network without switching transients.
Connection to the network during voltage zero-crossings, providing smooth connection of the groups. |
| Number of groups |
Up to 12 groups per controller |
| Binary switching sequence |
· 1:1:1
· 1:2:2
· 1:2:4 |
| Acquisition time |
Full compensation within one network cycle:
· Up to 20ms for 50Hz network
· Up to 16ms for 60Hz network |
| Control Mode |
Main CT installation location:
· Load only (open loop)
· Load + Capacitors (close loop) |
| Network Configuration |
Single phase
Three phases WYE/DELTA balanced
Three phases WYE/DELTA unbalanced |
| Capacitors |
Heavy duty capacitors:
· 450V: 7.5um film thickness
· 550V: 10um film thickness
· 690V: 12um film thickness
· 800V: 14um film thickness
Maximum ratings:
· Overcurrent: 4 In
· Inrush current: 200 In |
| Inductors |
High performance cooper inductors:
· Rated inductance and tolerance: -1.5% / +2.5%
· Insulation voltage: 8,000V |
| Operational Modes |
Manual
Automatic
Test
Scan option:
Can be used in Manual or Automatic modes. This option provides uniform utilization of the capacitor groups,
which is carried out by transient free switching between engaged and non-engaged capacitor groups every few
seconds in FIFO rotating sequence (First In First Out). Prevents overloading and overheating of the capacitors
and inductors. |
| Display Structure |
Graphic, high contrast FSTN LCD
4.7″, Black/White
Long life LED backlight
Antiglare coated polycarbonate window |
| Display Functions |
Menu driven operation
Self-explained windows
User friendly
Easy installation via wizard |
| Display Modes |
Large Digit Screen – displays 9 numerical values
Waveform Screen – displays wave shape together with wave form detailed information
Harmonics Screen – displays complete harmonic spectrum, including each harmonic details (amplitude,
percentage and phase shift) |
| Software |
Upgrading methods:
No Jumpers or switches
Firmware can be upgraded by communication
All parameters are software selectable, and stored in onboard Flash memory
Easy, user-friendly firmware upgrade process
Optional features can be enabled just by communication |
| PC Software |
PQScada Sapphire Software
Complete System Remote Control
Real Time measurements
Time-Of-Use and Cost Allocation
Harmonic & Waveform graphic and tabular display
Comprehensive Data Logging, including triggers and set points
Automatic analysis to international Power Quality standards, such as IEEE 519 (Harmonics standard)
Easy Report Generation
Exporting to word processor (such as Microsoft Word) and spreadsheets (such as Microsoft Excel)
User Friendly on-line help, toolbars and hints
Internet and Intranet operation
Stand-alone or network versions, allowing intra-net and internet connectivity |
| Switching Module |
Electronic switches:
Rated voltage: 2400V/Peak
Rated Current: 350Amp
Cooling:
Temperature controlled, forced air cooling system. Panel mounted
Easy for Maintenance
External air circulation (air does not pass through the cabinet)
Long life, Ball bearings fan
Low losses:
400V: 0.35% (3.5W/kVAr)
690V: 0.25% (2.0W/kVAr) |
| Switching Module |
Electronic switches:
· Rated voltage: 2400V/Peak
· Rated Current: 350Amp Cooling:
· Temperature controlled, forced air cooling system. Panel mounted
· Easy Maintenance
· External air circulation
· Long life, Ball bearings fan
Low losses:
400V: 0.35% (3.5W/kVAr)
480V: 0.30% (2.0W/kVAr) |
| PC Software |
PQSCADA Sapphire Software (Refer Appendix B-3):
· Complete System Remote Control
· Real Time measurements
· Time-Of-Use and Cost Allocation
· Harmonic & Waveform graphic and tabular display
· Comprehensive Data Logging, including triggers and set points
· Automatic comparing to international Power Quality standards, such as IEEE 519 (Harmonics standard):
· Easy Report Generation
· Exporting to word processor (such as Microsoft Word) and spreadsheets (such as Microsoft Excel)
· User Friendly on-line help, toolbars and hints
· Internet and Intranet operation
· Stand-alone or network versions, allowing intra-net and internet connectivity |
Built in Power Quality
Measurement System |
Simultaneous measurement of the following sections:
Mains (total of load and capacitor system)
Load
Capacitors (system)
Combination of Mains, Load and Capacitors.
For example, if reactive energy parameter is selected, the user can see the kVAr consumption by the Load, the
connected kVAr by the Capacitor System and the result on the Mains.Calculation method:
True RMS measurements (up to 63rd harmonics)
Based on FFT algorithm which is carried out cycle by cycle (128 samples per cycle)Measured parameters:
Frequency Common
Phase Current N, L1, L2, L3
Phase to phase Current* L1-2, L2-3, L3-1
Phase Voltage N, L1, L2, L3
Phase to Phase Voltage L1-2, L2-3, L3-1
Active Power (kW) L1, L2, L3, Total
Reactive Power (kVAr) L1, L2, L3, Total
Apparent Power (kVA) L1, L2, L3, Total
Power Factor L1, L2, L3, Total
*Note: Unique feature: internal current of feeder transformer (delta secondary)
THD, harmonic spectrum, and waveform analysis for:
3 line current of Mains DELTA, WYE
3 line-line current of Mains DELTA 3 line current of Load DELTA, WYE
3 line-line current of LoadDELTA 3 line current of Capacitors DELTA, WYE
3 Phase to Neutral voltage DELTA, WYE
3 line Phase to Phase voltages WYE Neutral current WYE Neutral voltage WYE
Energy:
Active Energy (kWh)
Reactive Energy (kVARh)
Stores energy data every 15 minutes for previous |
Controller
Specifications |
Power supply:
230V, 50/60Hz
LCD display:
Size: 94x76mm
Resolution: Graphic 160×128 pixels
Type: FSTN, LED backlight
Frequency: 30 to 70 Hz
Power consumption: 10VA
Operating temperature: -20 to +55°C
Communications:RS-485 communication port
Protocol: ELCOM (Elspec’s protocol), Modbus/RTU
Alarm:Voltage free N.O. / N.C., relay, max 250 VAC / 2A
Protection class: IP40
Dimensions: 144x144x138mm
Weight: 1.4Kg
Storage temperature: -25°C to +70°C
Sensors:
Three 5A current sensors for Mains/Load currents
Two 5A current sensors for capacitors system current
Four voltage sensors (up to 500V phase to ground)
User keys: Five soft touch buttons
Controller box standard:
Electromagnetic compatibility: EN50081-2, EN50082-2, EN55011, EN61000-4-2/3/4/5, ENV50204, ENV50141
Safety standards: EN61010-1, EN50439-1 |
