FREE COMTRADE VIEWER
Empower your ability to plan, control and make data-driven decisions
Read Comtrade Files

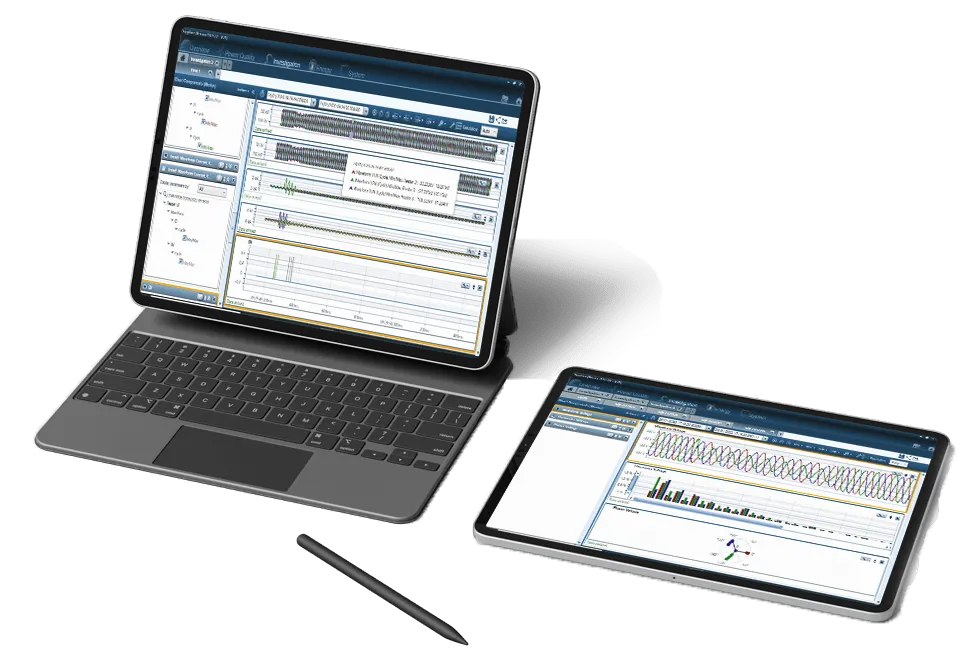

PQSCADA Sapphire is a free COMTRADE viewer developed by Elspec. It reads COMTRADE files and transform them into high quality graphics for empowering your ability to plan, control and make data-driven decisions.
COMTRADE is a Common file format used for storing waveforms, logical events and descriptive data for power system disturbance events. As power disturbance event analysis usually includes a large volume of data, it is challenging to quickly communicate the data findings and identify patterns to pull insights without visualization.
This is where our PQSCADA Sapphire free COMTRADE viewer comes in. PQSCADA Sapphire offers numerous ways to visualize data from the acquired COMTRADE file.
Data Visualization
PQSCADA Sapphire offers numerous ways to visualize data from the aquired COMTRADE file. PQSCADA Sapphire’s extensive charts capabilities include:
- Trend chart
- Spectrum chart
- Statistical chart
- Scatter Event chart
- Scatter Parameter chart
- Summary chart
- Grid chart
- Phasor chart
- Event chart
- Cyclic Histogram chart
Data Computation
PQSCADA Sapphire will automatically calculate and store ~5,000 power parameters at a resolution of ½ cycles, 10/12 cycles, 150/180 cycles, 10 min and 2 hours of which, any given resolution is calculated for display and reporting purposes from acquired waveform signals (COMTRADE file).
Power Quality Software
PQSCADA Sapphireis a multi component, vendor free, power quality software. PQSCADA Sapphire integrates data from protection relays, fault recorders, power quality analyzers, smart meters and other data sources into a single data base.
PQSCADA Sapphire reads data from a variety of sources, data formats supported include:
- COMTRADE: IEEE Std C37.111-1991 | IEEE C37.111-1999
- PQDIF: Power Quality Data Interchange Format – IEEE Std 1159.3-2002
- Elspec PQZIP – Continuous waveform recording
- Elspec PQZ – Continuous waveform recording
- IEC 61850 MMS
- MODBUS TCP
