Pure BlackBox
Handheld Power Quality Analyzer

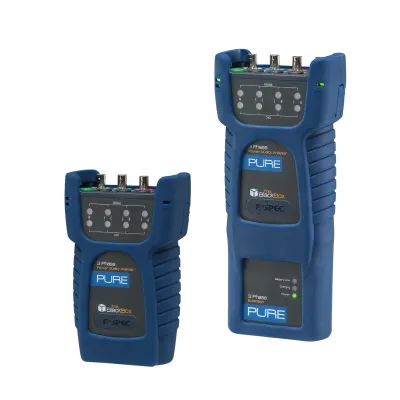

The Pure BlackBox, an advanced handheld power quality analyzer equipped with PQZIP Technology, is an easy to use plug and play device that continuously records all power quality parameters without thresholds settings or recording configuration. The device is available in 2 versions: Single Phase, 3-Phase.
Features
Continuous waveform recording
Class A devices IEC61000-4-30
Configuration FREE Device
SD card slot
Fast USB connectivity to PC
Plug & Play
Continuous Waveform Recordings
The Pure BlackBox continuously records
voltage and current waveform sampled at a
rate of 256 Sample/Cycle at 50/60Hz . Which
provides information at a very high
resolution, enabling to detect and analyze
the slightest change without the need to set
up triggers or thresholds.
Supreme Trends Resolution
More than 5,000 power quality parameters such as RMS, THD, owers, power factor, unbalance and harmonics are logged continuously for more than a year at half cycle, 10/12 Cycles, 150/180 Cycles, and 2 hours resolution.
Extended Harmonics Recording
The Pure BlackBox records and stores 128 harmonics components at 50Hz resolution and 512 inter-harmonics components at 5Hz resolution for both voltage and current.
Comprehensive Event Mechanism
The PureBB is designed to detect any event occurring on your system. The PureBB analyzer is capable of recording waveform signals continuously. The event configuration doesn’t trigger the recording but rather stores summary logs including start and end time, duration, severity and magnitude of the event. All events can be displayed in a tabular or scatter charts as CBEME/ITIC.
Device Specifications
Product Series | 3- Phase | Single Phase |
|---|---|---|
General | ||
| Voltage input | 4 channels, 100-690VAC Nominal Measuring up to 1.5 kV RMS | 2 channels, phase and neutral through power socket 100/240V AC Nominal Measuring up to 0.5kV RMS |
| Current Channels | 4 channels Voltage output CTs (0-10V peak) | 1 channel, between source and load up to 10A Peak |
| Line Frequency | 40-70Hz | 40-70Hz |
| Sampling Rate | 46,080Hz | 46,080Hz |
| LED Indicators | 11 Bi-color LED: Voltage clips status - 4 Current clamps status - 4 SD card status - 1 PQZ Recording status - 1 General status - 1 | 3 Bi-color LED: SD card status - 1 PQZ Recording status - 1 General status - 1 |
| Accuracy | IEC 61000-4-30 Class A | IEC 61000-4-30 Class A |
Communication | ||
| LAN | Available in extension module | N/A |
| USB | PQZ file download, FW upgrade & clock setting | PQZ file download, FW upgrade & clock setting |
Power | ||
| Power Supply | 100-240V AC 50/60Hz 10W 140-300V DC 5V DC over USB | 100-240V AC 50/60Hz 10W 5V DC over USB |
| Ride Through | 30 sec | 30 sec |
| Battery | 5h with extension module | N/A |
Mechanical | ||
| Weight | 0.4kg | 0.25kg |
| Dimensions | 180 x 115 x 60 | 146 x 82 x 48 |
Synchronization | ||
| External Synchronization | NTP available in extension module | N/A |
| Internal Synchronization | 10ppm | 10ppm |
Environmental | ||
| Operating Temperature | -20°C to +70°C | -20°C to +70°C* |
| Humidity | 5% to 95% non-condensing | 5% to 95% non-condensing |
| IP Protection | IP40 | IP40 |
Storage | ||
| Nonvolatile Memory | SD Card | NA |
(*) T>60°C requires an external power supply (**) see SD card specifications in user manual Disclamer: Specifications subject to changes without prior notice
Optional Accessories
Extension Module
AC power supply
LAN port (RJ45)
USB – data & DC power supply or wireless communication WiFi/ 3G dongle
Battery power/backup source of up to 4 hours
Protective Case
Protects the device from scratches and shocks. Available for both models
1 – 200A Mini Clamp
Ordering Information SOA-0000-0500
Measurement Range up to 200A AC
Output Signal 1,000m V/A, 10m V/A
Operating Temperature – 20°C to + 60°C
Cable Length 1.2m
Custom Clamp 3-Flexible Current Probes
Ordering Information SOA-3003-0271
Measurement Range 30A/300A/3000A AC RMS
Operating Temperature – 20°C to + 65°C
Probe Cable Length 610mm (24”)
Probe Cable Diameter 194mm (7.5”)
DC Current Clamp
Ordering Information SOA-0000-1400
Measurement Range 1,500A DC / 1,000A AC
Output Signal 1m V/A, 10m V/A
Operating Temperature – 10°C to + 55°C
Cable Length 1.4m
Elspec Backpack
Carry and protect your full Elspec kit and tools
Multiple pockets for complete flexibility
High-grade padding for maximum comfort and a side laptop compartment
Size: 50cm x 43cmx 27cm
